1gr Kees Van Der Westen Spiritello

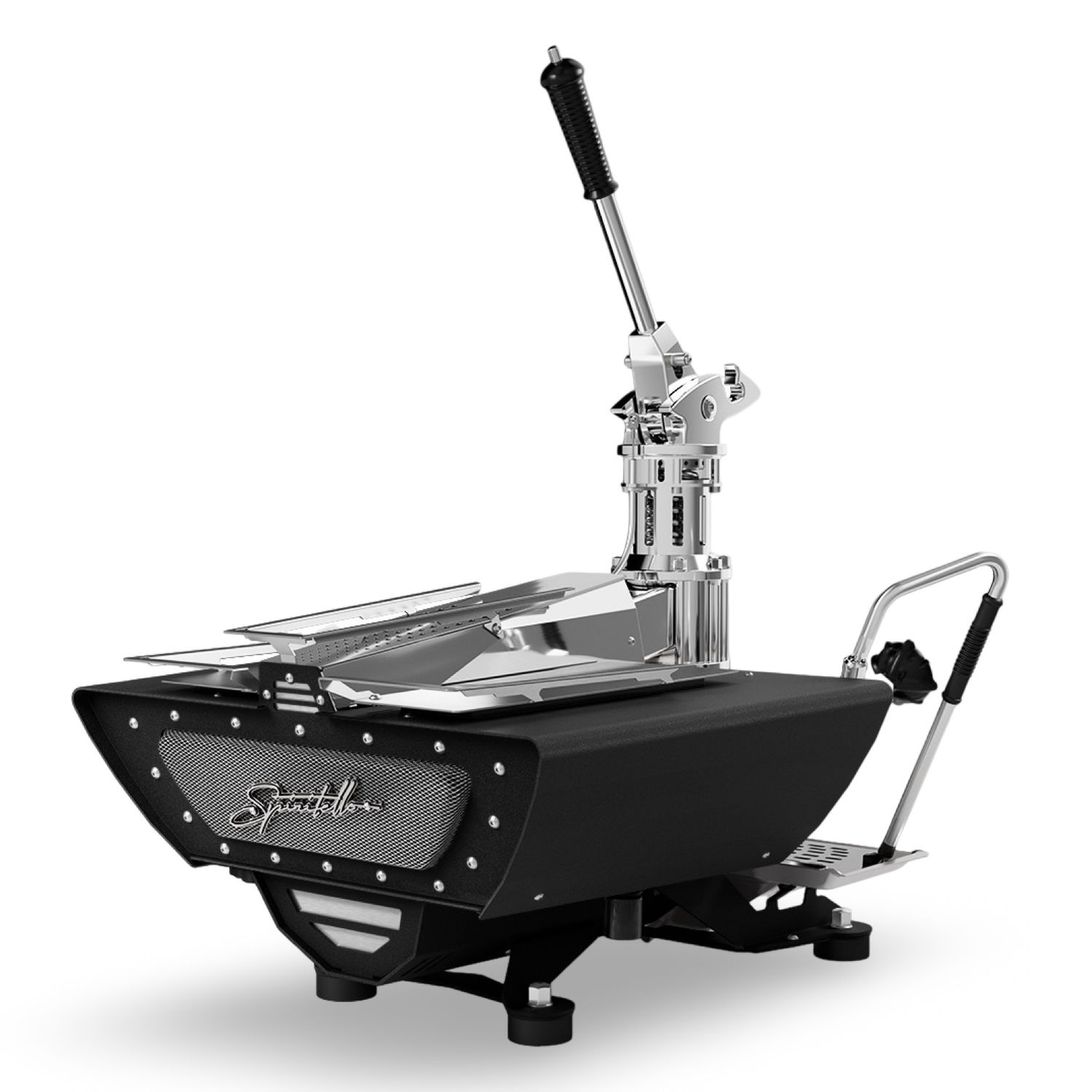

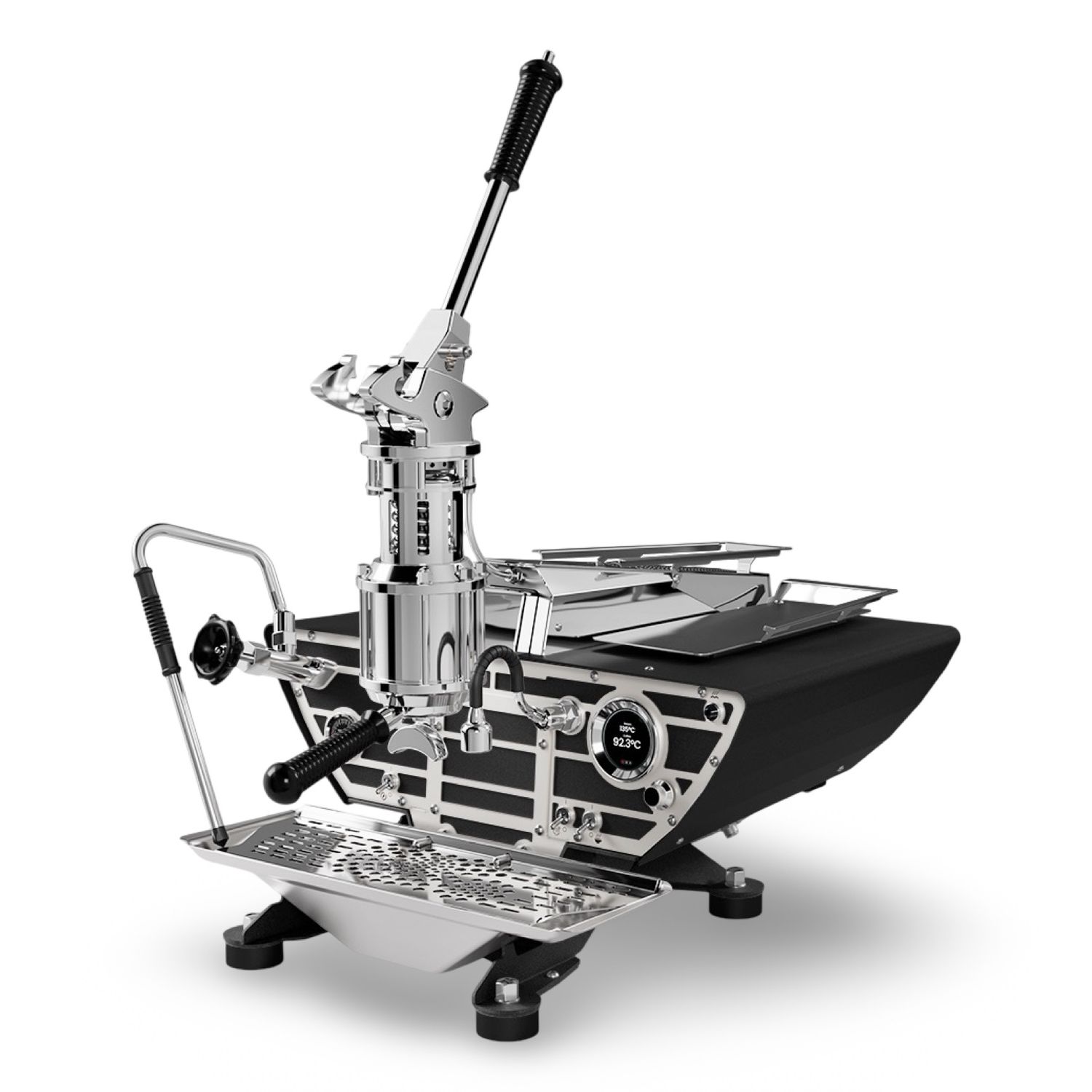

Kees van der Westen Spiritello Lever Espresso Machine — 1 Group Spring Lever with Dual Boiler & Idrocompresso Group

Overview

Handcrafted in the Netherlands, the Kees van der Westen Spiritello is a one-group spring lever espresso machine that pairs a classic lever group with the control of modern espresso technology. The spring-loaded Idrocompresso group delivers the thorough pre-infusion and naturally declining extraction pressure that lever machines are prized for, while adjustable pre-infusion, adjustable spring pressure, and dual auto-stop functions bring a level of repeatability traditional levers have never offered.

Underneath sits a dual boiler system in 316L stainless steel — a 0.8L coffee boiler cast as one piece with the group for saturated, PID-controlled temperature stability, and a 3.5L steam boiler with a heat exchanger that pre-heats incoming water before it reaches the coffee boiler. The Spiritello runs plug-and-play from its 3.5L stainless reservoir with an internal rotary pump, or plumbs directly to mains and drainage with all parts included. Suited to specialty cafés, roastery bars, offices and dedicated home setups, and available in any RAL colour for a fully personalised finish.

Features

• Idrocompresso Spring Lever Group: Classic spring-loaded lever delivering thorough pre-infusion and a naturally declining extraction pressure profile
• Adjustable Pre-Infusion Pressure: Set anywhere from 1.5 to 4 bar via a large knob within easy reach beneath the machine, with pressure shown on the gauge
• Adjustable Spring Pressure: Extraction pressure tuned by turning a disc on top of the spring — adjustment tool included
• Auto Stop by Weight: Connect an ACAIA Lunar scale and set two target weights; an integrated flow-rate formula stops the shot in time to prevent overshoot, with an adjustable offset per target
• Auto Stop by Pressure: Two pre-set options for easy repeatability of volumetric shots
• Safety Locking Mechanism: Newly developed locking system virtually eliminates the danger of a bouncing lever
• Stop & Flush Buttons: Stop extraction mid-shot and return the lever quietly to rest, or purge and clean the group screen, without touching the lever
• Dual 316L Stainless Boilers: Independently switchable coffee and steam boilers, both PID controlled and drainable via ball valve
• Heat Exchanger Pre-Heating: Hot-cold cross-flow heat exchanger brings incoming water to near boiler temperature, holding target temperature under fast, heavy use
• 53mm Round Display: Two-inch front display with push/turn knob for eco mode, machine settings and an automatic shot timer that appears whenever the lever is pulled
• Zappo Steam Wand: Double-walled stainless tube with a PEEK tip and four 1.2mm holes — non-burn to the touch, and milk barely adheres
• Adjustable Hot Water: Hot water is mixed with cold for a non-spattering pour, with temperature and volume both adjustable
• Plug & Play or Plumbed: Run from the 3.5L stainless reservoir, or connect directly to water mains and drainage with the supplied fittings
• Internal Rotary Pump: Quiet 180W stainless rotary pump rated for continuous use, and able to be disengaged for near-silent operation when mains pressure allows
• Custom RAL Colour: Frame and bodywork available powder coated in any RAL colour for a durable, long-lasting custom finish

Specifications

• Model: Spiritello
• Brand: Kees van der Westen
• Type: 1 Group Spring Lever Espresso Machine
• Group: Idrocompresso Spring Lever with Locking Mechanism
• Coffee Boiler: 0.8 L — 316L Stainless Steel, 450W Element, PID Controlled
• Steam Boiler: 3.5 L — 316L Stainless Steel, 2 x 900W Elements, PID Controlled
• Pump: Internal Stainless Steel Rotary Pump — 180W Motor
• Water Supply: 3.5 L 316L Stainless Reservoir or Direct Mains Connection
• Pre-Infusion Pressure: Adjustable 1.5 – 4 bar
• Display: 53mm Round Display with Push/Turn Knob
• Steam Wand: Zappo Double-Walled Stainless — PEEK Tip, 4 x 1.2mm Holes
• Auto Stop: By Weight (ACAIA Lunar) and By Pressure
• Finish: Custom RAL Powder Coat Available
• Dimensions: 555 x 600 x 772mm (w x d x h)
• Net Weight: 45 kg (dry)
• Voltage: 240V / 50Hz
• Wattage: 2,720W
• Power: 15A
• Made In: The Netherlands
