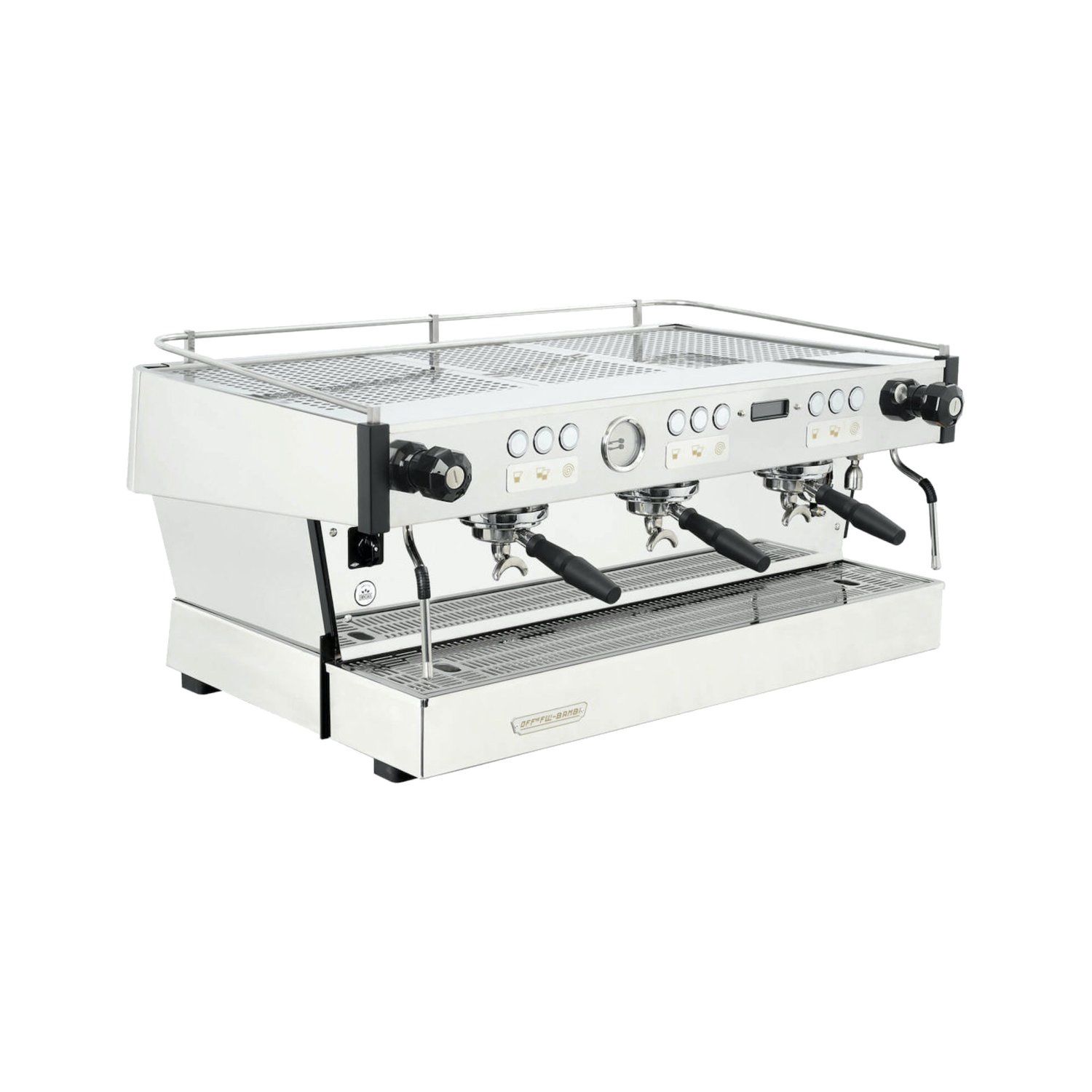

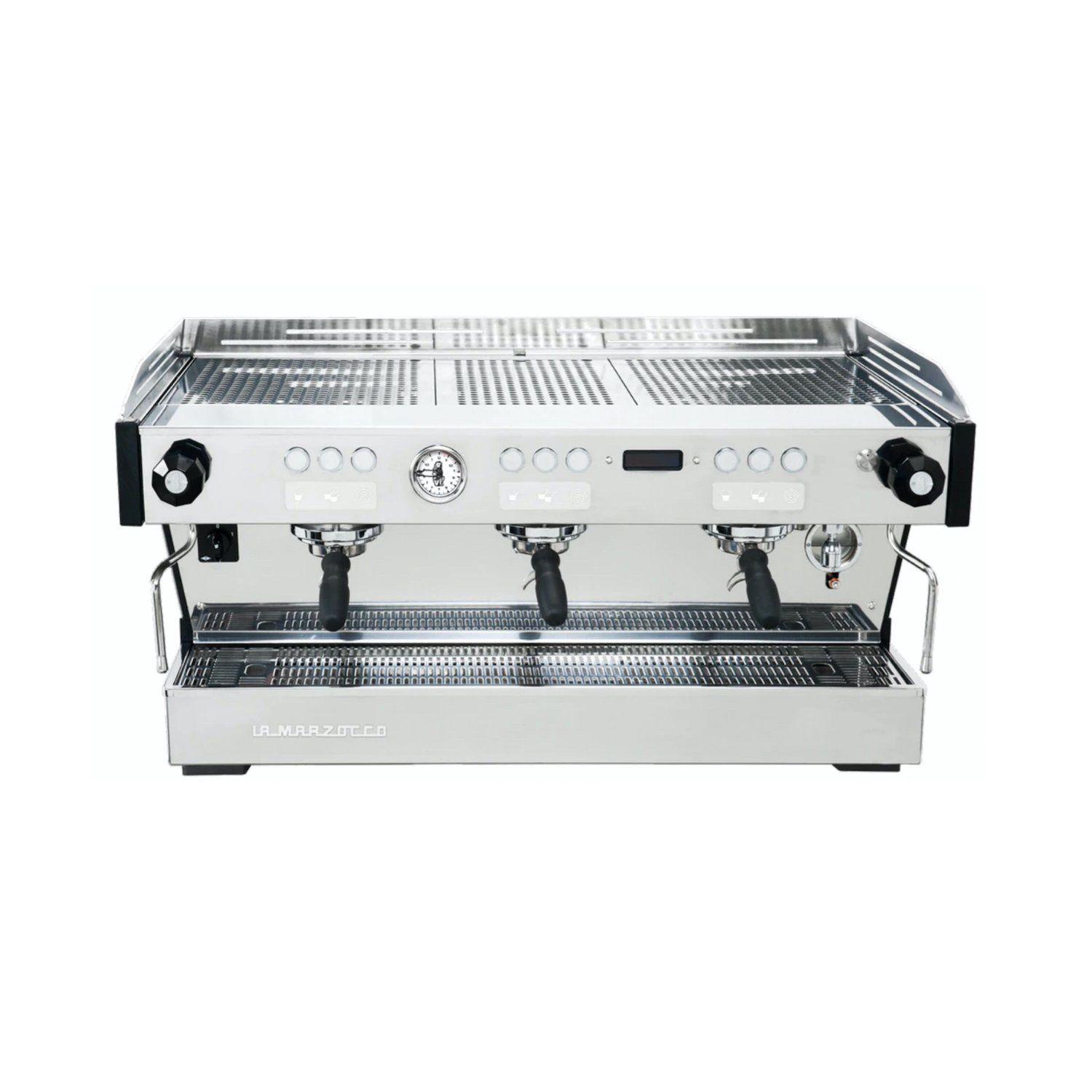

3gr La Marzocco Linea PB X High Cup AV Coffee Machine

La Marzocco Linea PB X AV — 3 Group High Cup Commercial Espresso Machine

Overview

The La Marzocco Linea PB X is the most advanced evolution of the Linea platform — taking the trusted industry workhorse and equipping it with La Marzocco's most advanced technologies. Built in Florence, Italy, the 3 group Linea PB X features independent saturated boilers for each group head, allowing baristas to optimise temperature for individual coffees and ensuring unmatched thermal stability even at the peak of the morning rush.

Five years after the launch of the Linea PB, which became one of the most trusted machines in the industry, La Marzocco introduced the X version with a dynamic pre-heating system, independent coffee boilers, Pro Touch cool-to-the-touch steam wands, and a hot water mixing valve accessible from the side panel. Refreshed aesthetics bring barista lights as standard and white details across logos, manometer, display lettering, and keypads. Advanced electronics and a digital display provide intuitive control over boiler temperature, brewing volume, hot water tap dose, and auto-backflush. Insulated boilers and Eco Mode reduce energy consumption, while optional integrated scales (ABR) let baristas brew by volume, mass, or brew ratio with automatic stop at the programmed weight. USB connectivity allows firmware updates to keep the machine current.

Available in 2, 3, or 4 group configurations, with optional high legs, cup warmer, and personalised RAL colours on request. Ideal for specialty cafés, roasteries, multi-roaster venues, high-volume hospitality operations, and any coffee program that demands the highest level of precision, flexibility, and the La Marzocco standard.

Features

• Independent Saturated Boilers — Separate saturated boilers for each group head allow baristas to optimise temperature for individual coffees, ensuring unmatched thermal stability.
• Dual PID (Coffee and Steam) — Electronic control of both coffee and steam boiler temperatures for precision and consistency.
• Dynamic Pre-Heating System — Ensures unmatched temperature stability and provides steady brew water and steam even during peak demand.
• Advanced Electronics and Digital Display — Intuitive programming makes it easy to adjust machine parameters including temperature, volume, and shot timers.
• Automatic Volumetric Dosing (AV) — Programmable shot dosing for consistent, repeatable results across baristas and shifts.
• Piero Group Caps — Re-engineered internal water path and flowmeter positioning increase temperature stability.
• Pro Touch Steam Wands — High-performing steam wands that are cool to the touch as standard.
• Insulated Boilers — Reduce energy consumption while contributing to temperature stability.
• Eco Mode — Machine can be programmed to enter standby mode when not in use, reducing boiler temperatures and improving energy efficiency.
• Optional Integrated Scales (ABR) — Precision scales integrated in the drip tray for brewing by volume, mass, or brew ratio with automatic stop.
• Hot Water Economizer — Fine-tune the tap water temperature for long blacks and tea service, accessible from the side panel.
• Barista Lights — LED lighting as standard, allowing baristas to focus on extraction and the cup.
• USB Firmware Updates — USB port makes it possible to update machine firmware and keep the machine current.
• High Legs Available (Special Order) — Adds height for easier access beneath the machine.
• Cup Warmer Available (Special Order) — Maintains espresso and cappuccino cups at proper temperature.
• Personalised RAL Colours (Special Order) — Customisable colours based on the RAL colour system, on request.
• Available in 2, 3, or 4 Group Options — Scale the Linea PB X to suit your venue's volume requirements.
• La Marzocco Pro App Compatible — Electronic board enables connectivity for remote monitoring and management.
• Handmade in Florence, Italy — Crafted by La Marzocco with the quality and heritage the brand is renowned for.

Specifications

Model: Linea PB X AV

Brand: La Marzocco

Configuration: 3 Group, High Cup

Boiler System: Independent Saturated Boilers (coffee) + Steam Boiler

Coffee Boiler Capacity: 3 x 1.3 litres (independent per group)

Steam Boiler Capacity: 11 litres

Temperature Control: Dual PID

Saturated Groups: Yes (independent)

Volumetric: Yes (AV)

Pro App Compatible: Yes

Wattage: 5,830W (min) / 7,790W (max)

Power: 32A

Voltage: 240V

Dimensions: 950 x 590 x 533mm (w x d x h)

Weight: 77 kg

Warranty: 12 Months Manufacturer's
