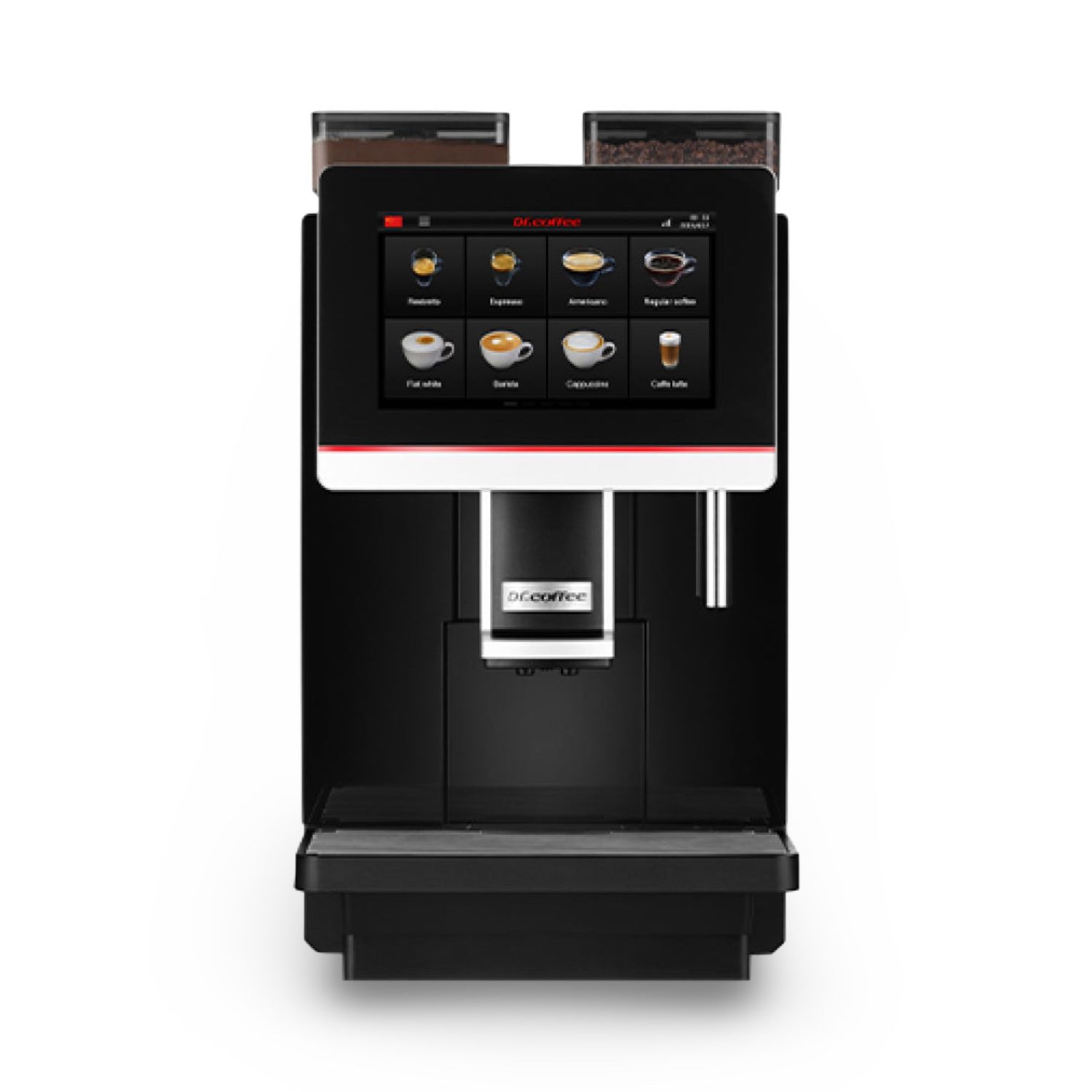

Dr Coffee - Coffee Bar Plus

Dr Coffee Coffee Bar Plus — Fully Automatic Commercial Coffee Machine

Overview

The Dr Coffee Coffee Bar Plus is a fully automatic bean-to-cup commercial coffee machine designed for high-output environments where quality and simplicity need to coexist. Capable of producing up to 200 cups per day and up to 100 beverages per hour, the Coffee Bar Plus is built for restaurants, offices, gyms, hotels, convenience stores, and any venue that needs consistent, high-volume coffee service without a dedicated barista.

At its core, the Coffee Bar Plus features specially crafted ceramic flat burr grinders with nine grind settings and a dual high/low-pressure brewing system — high pressure for espresso-based drinks, low pressure to mimic pour-over style coffee. A 21-gram capacity metal brewing unit delivers rich, full-flavoured extraction with lasting durability rated to 300,000 cups. The detachable milk system produces smooth, velvety frothed milk at 60–70°C for one-touch milk coffees, and automatically cleans after each use for hassle-free maintenance. A dedicated hot water wand handles tea and long black service independently.

A lateral 10.1" full-colour touchscreen makes operation as simple as using a smartphone — staff can select, customise, and serve drinks with minimal training. Compatible with IoT connectivity and mobile payments, the Coffee Bar Plus supports remote management, usage tracking, and cashless vending. Compact enough to fit in tight spaces, yet powerful enough to serve a busy venue all day.

Available with optional SC10 or SC05 professional refrigerator units for fresh milk supply.

Features

• Ceramic Flat Burr Grinders — 500kg consistent ground output with quiet operation and uniform grind size, preserving coffee flavour by minimising oxidisation.
• High/Low-Pressure Brewing System — High pressure for espresso extraction, low pressure to mimic pour-over style coffee, all from a single machine.
• 21g Capacity Metal Brewing Unit — Heavy-duty brewer rated for 300,000 cups of lasting performance.
• One-Touch Milk Coffee — Fully automatic milk frothing at 60–70°C for lattes, cappuccinos, and flat whites at the touch of a button.
• Detachable Milk System with Auto Clean — Non-interfering automatic cleaning of the milk circuit simplifies daily maintenance.
• 10.1" Full-Colour Lateral Touchscreen — Intuitive interface for drink selection, customisation, and machine programming.
• Dual Boiler System — Separate boilers for hot water and steam, shortening preparation time and maintaining consistency.
• 9 Grind Size Options — Adjustable grind settings for customised coffee flavour profiles.
• DIY Coffee Customisation — Adjust ground amount, pre-brewing time, and temperature, and save custom recipes.
• Independent Hot Water Wand — One-click hot water supply for tea service and easy cleaning.
• IoT Compatible — Supports remote access, administration, usage tracking, and traffic management.
• Mobile Payment Ready — Optional integration for cashless payment in vending and self-service applications.
• Auto Pressure Pump — Consistent extraction pressure without manual intervention.
• Flexible Water Supply — 4L water tank or plumb directly to mains water supply.
• Powder Hopper — 1.2kg capacity for chocolate, milk powder, or alternative beverage ingredients.
• Automatic Cleaning System — Brewing and frothing systems automatically cleaned on power on/off, with customisable cleaning routines based on cup count or work time.
• Compact Commercial Footprint — Small enough for tight spaces, powerful enough for high-volume environments.
• Optional Professional Refrigerator — Available with SC10 or SC05 refrigerator units for fresh milk supply.

Specifications

Model: Coffee Bar Plus

Brand: Dr Coffee

Type: Fully Automatic Bean-to-Cup

Daily Output: 200 cups

Hourly Output: 100 cups

Grinder: Ceramic Flat Burrs (9 settings)

Brewing Unit Capacity: 21g (metal)

Bean Hopper Capacity: 1.2 kg

Powder Hopper Capacity: 1.2 kg

Water Supply: 4L Water Tank or Mains (G3/4")

Water Pressure: Max 0.6 MPa

Display: 10.1" Full-Colour Lateral Touchscreen

Hot Water Outlet: Yes

Milk System: Detachable, auto-clean

Wattage: 2,700–3,100W

Power: 15A

Voltage: 240V

Dimensions: 340 x 545 x 620mm (w x d x h)

Weight: 26.5 kg

Warranty: 12 Months Manufacturer's
