ECM S64 Grinder Manual

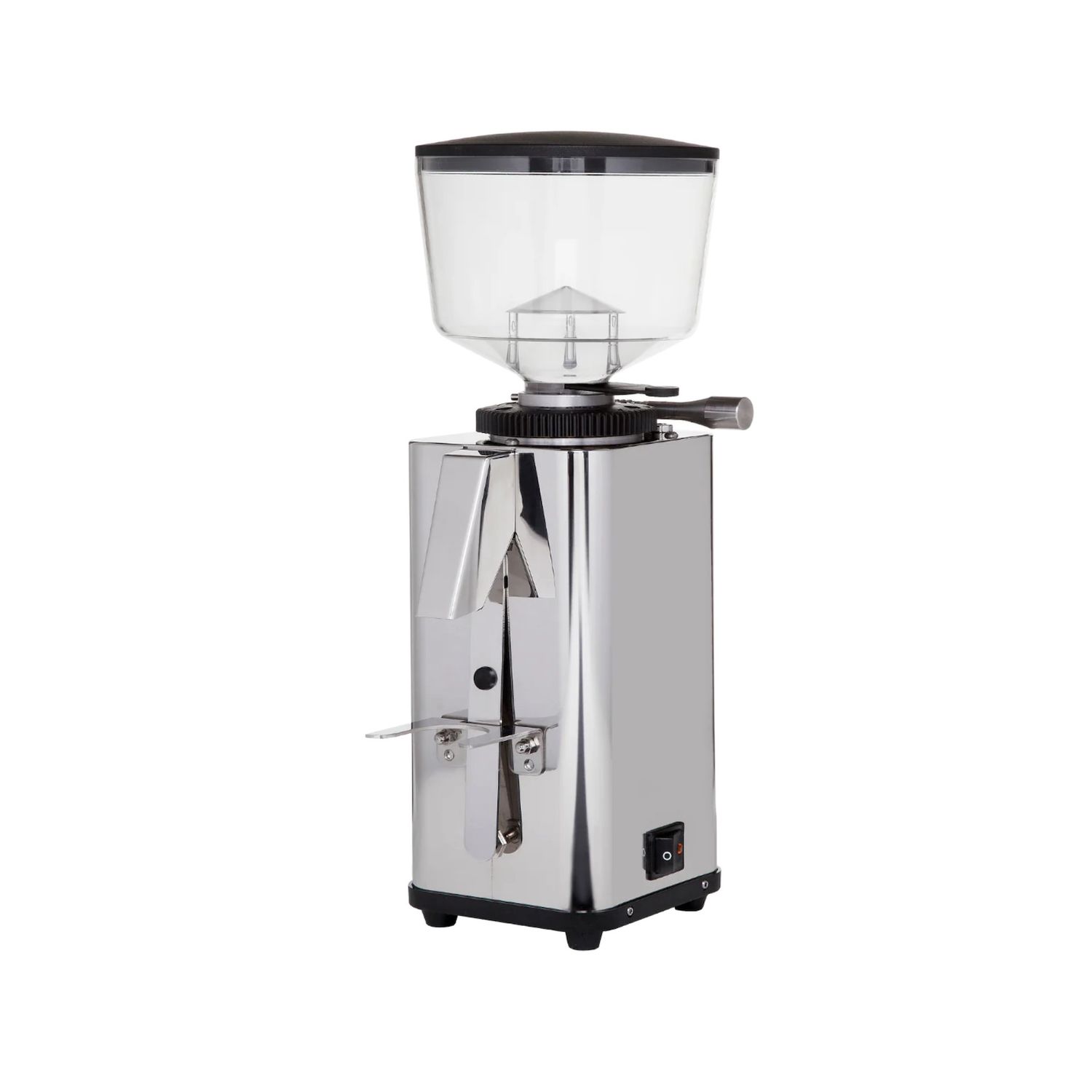

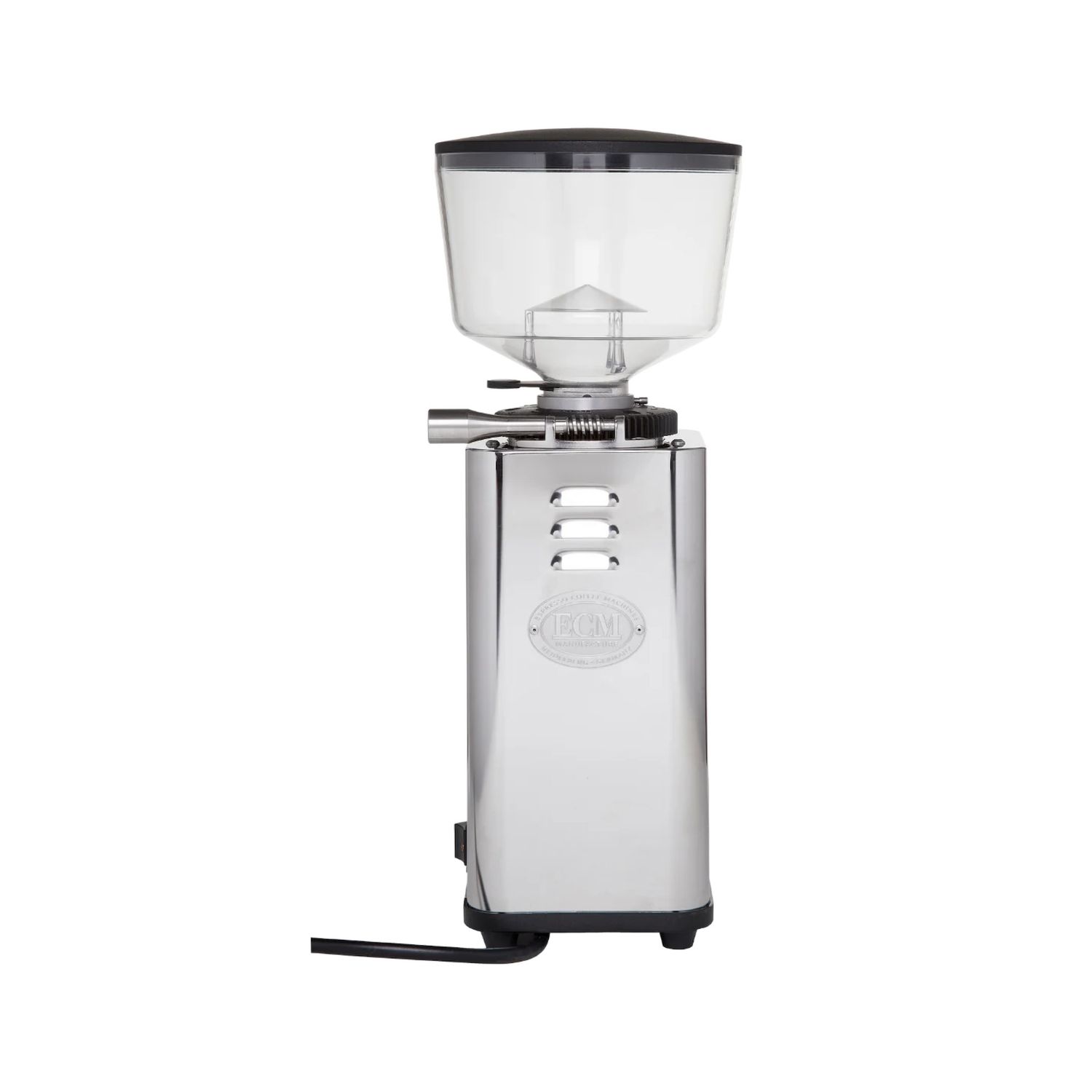

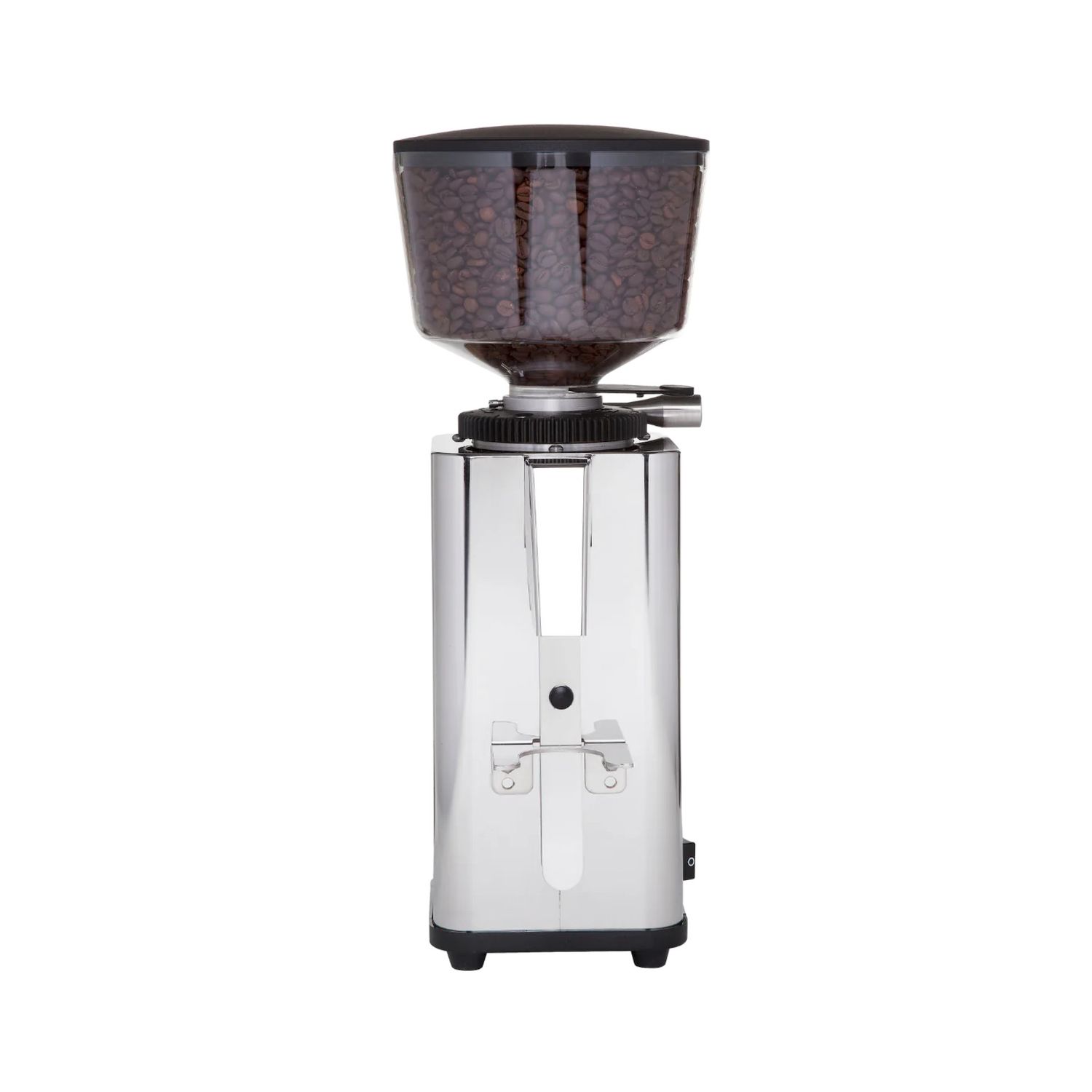

ECM S-Manuale 64 Coffee Grinder — Domestic Espresso Grinder with 64mm Flat Burrs

Overview

The ECM S-Manuale 64 is a powerful, fast and unpretentious domestic espresso grinder built around a classic, simple design and user-friendly handling. With 64mm hardened steel flat burrs, a 450W motor, and micrometric grind adjustment, the S-Manuale 64 lets the home barista dial in the ideal grind setting for the best flavour results — then activate the grinder with the push of a button and grind directly into the portafilter basket or vessel. A height-adjustable portafilter rest accommodates different basket sizes for a clean delivery, while cooling vents on the rear body release heat from the grinding chamber to maintain temperature stability and protect flavour in the cup.

Features

• Manual Grinding Function: Push-button activation for direct grinding into portafilter or vessel
• Micrometric Grind Adjustment: Fine, precise dialling-in for ideal flavour extraction
• 64mm Flat Hardened Steel Burrs: Large surface area for an efficient, consistent grinding process
• 450W Motor: Powerful and fast — paired with the 64mm burrs for confident throughput
• Height-Adjustable Portafilter Rest: Adapts to suit different portafilter sizes for a clean delivery into the basket
• Cooling Vents on Rear Body: Effective heat release from the grinding chamber for temperature stability and optimal flavour
• 500g Hopper (1000g Optional): Standard 500g bean hopper with optional upgrade for larger capacity
• Polished Stainless Body: Classic ECM build quality and aesthetic for the home bench

Specifications

• Model: S-Manuale 64
• Type: Domestic
• Burrs: 64mm Flat — Hardened Steel
• Motor: 450W
• Grind Adjustment: Stepless / Micrometric
• Dosing: On Demand (Manual Grinding Function)
• Hopper Capacity: 500g (1000g Optional)
• Dimensions: 145 x 200 x 415 mm (w x d x h)
• Net Weight: 6.5 kg
• Voltage: 240V / 50Hz
• Power: 10A
• Warranty: 12 Months Manufacturer
